| Place of Origin: | China |
| اسم العلامة التجارية: | VEOLIA |
| إصدار الشهادات: | CE |
| Model Number: | Veolia EDI MK-3PharmHT |
| Document: | Veolia-E-Cell-MK-3PharmHT-L...-L.pdf |
| Minimum Order Quantity: | 1 pc |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 60000 Units per Month |
| MK-3PharmHT Resistivity: | ≥ 10 MOhm-cm | MK-3PharmHT Sodium: | ≥ 99.9% removal |
|---|---|---|---|
| MK-3PharmHT Silica (SiO2): | Up to 99% removal | MK-3PharmHT Hot Water Sanitization Cycles: | 160 |
| Product Inlet Pressure: | ≤ 6.9 bar (100 psi) | Product Pressure Drop: | 1.4–2.8 bar |
| Product Total Exchangeable Anions (TEA as CaCO3: | ≤ 63.6 ppm | Product Conductivity Equivalent: | ≤ 109 μS/cm |
| Application: | Laboratory purified water systems,Pharma Grade Pure Water System | ||
| إبراز: | Veolia MK-3PharmHT EDI module,pharmaceutical water EDI module,3.4 m3/h EDI module,pharmaceutical water EDI module,3.4 m3/h EDI module |
||
| Attribute | Value |
|---|---|
| Resistivity | ≥ 10 MOhm-cm |
| Sodium Removal | ≥ 99.9% |
| Silica (SiO2) Removal | Up to 99% |
| Hot Water Sanitization Cycles | 160 |
| Inlet Pressure | ≤ 6.9 bar (100 psi) |
| Pressure Drop | 1.4–2.8 bar |
| Total Exchangeable Anions (TEA as CaCO3) | ≤ 63.6 ppm |
| Conductivity Equivalent | ≤ 109 μS/cm |
| Applications | Laboratory purified water systems, Pharma Grade Pure Water System |

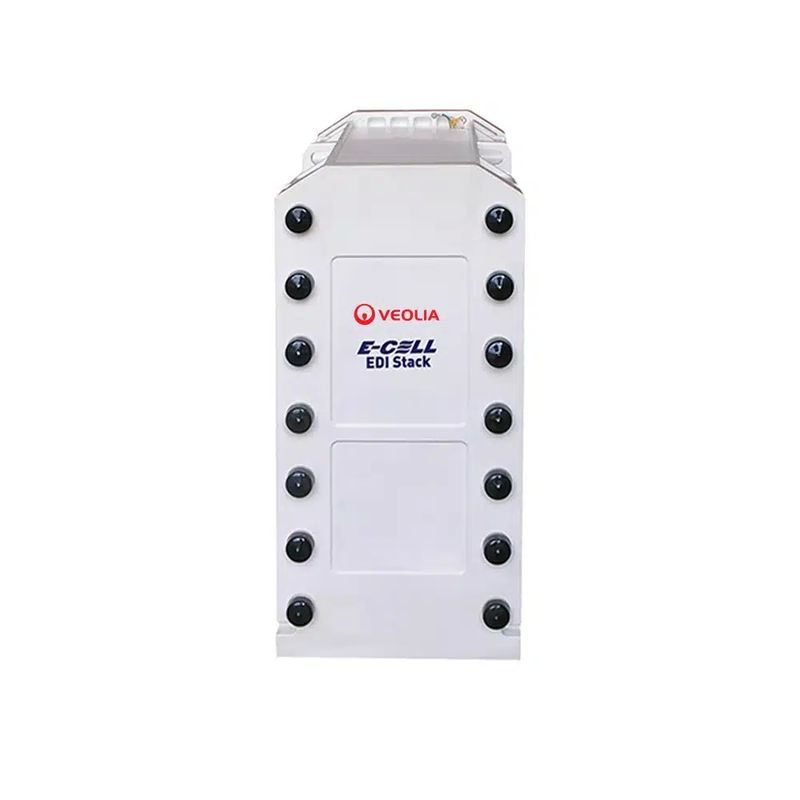

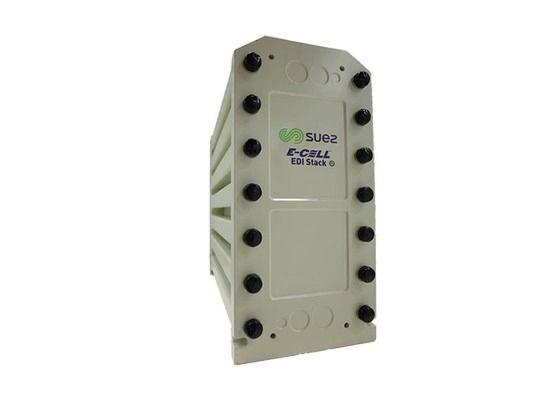

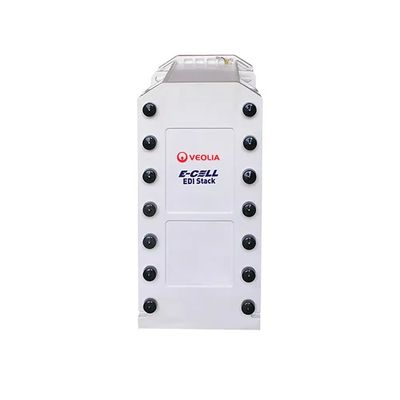

The E-Cell EDI MK-3PharmHT module is part of Veolia's electrodeionization product line, designed specifically for pharmaceutical and biotechnology applications:
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m3/h (15 gpm) |
| Flow Rate Range | 1.6-5.4 m3/h (7.0-23.8 gpm) |
| Dimensions | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Shipping Weight | 100 kg (220 lbs) |
| Recovery | Up to 96% |
| Voltage | 0-300 VDC |
| Amperage | 0-5.2 ADC |
| Parameter | Guaranteed Performance |
|---|---|
| Resistivity | ≥ 10 MOhm-cm |
| Sodium Removal | ≥ 99.9% |
| Silica (SiO2) Removal | Up to 99% |
The MK-3PharmHT produces water that exceeds USP, EP, and other pharmacopoeia standards for:
For performance projections and guarantees, Veolia offers Winflows software or direct consultation. View more models
FG Water Technologies, part of Wuxi Fenigal Science and Technology Co. Ltd., specializes in water treatment equipment design, manufacturing, and international distribution. Our product range includes:
We serve industries worldwide including pharmaceuticals, food & beverage, chemical processing, and power generation.
